Integrate with GitHub Enterprise Cloud - Enterprise Managed Users	GitHub Enterprise Cloud EMU	community

What is GitHub Enterprise Cloud - Enterprise Managed Users

With Enterprise Managed Users, you manage the lifecycle and authentication of your users on GitHub from an external identity management system, or IdP:

• Your IdP provisions new user accounts on GitHub, with access to your enterprise.
• Users must authenticate on your IdP to access your enterprise's resources on GitHub.
• You control usernames, profile data, organization membership, and repository access from your IdP.
• If your enterprise uses OIDC SSO, GitHub will validate access to your enterprise and its resources using your IdP's Conditional Access Policy (CAP). See "About support for your IdP's Conditional Access Policy."
• Managed user accounts cannot create public content or collaborate outside your enterprise. See "Abilities and restrictions of managed user accounts."

-- https://docs.github.com/en/enterprise-cloud@latest/admin/managing-iam/understanding-iam-for-enterprises/about-enterprise-managed-users

Preparation

The following placeholders are used in this guide:

• github.com/enterprises/foo is your GitHub organization, where foo is the name of your enterprise
• authentik.company is the FQDN of the authentik installation.
• GitHub Users is an application entitlement used for standard GitHub Enterprise Cloud EMU users.
• GitHub Admins is an application entitlement used for GitHub enterprise administrators.

:::info This documentation lists only the settings that you need to change from their default values. Be aware that any changes other than those explicitly mentioned in this guide could cause issues accessing your application. :::

authentik configuration

To support the integration of GitHub Enterprise Cloud EMU with authentik, you need to create an application/provider pair in authentik.

:::info In order to use GitHub Enterprise Cloud EMU, SCIM must also be set up. :::

:::info GitHub will create usernames for your EMU users based on the SAML NameID property, which must also match SCIM's _userName_ attribute. :::

Create an application and provider in authentik

1. Log in to authentik as an administrator and open the authentik Admin interface.
2. Navigate to Applications > Applications and click New Application to open the application wizard.

• Application: provide a descriptive name, an optional group for the type of application, the policy engine mode, and optional UI settings.
• Choose a Provider type: select SAML Provider as the provider type.
• Configure the Provider: provide a name (or accept the auto-provided name), the authorization flow to use for this provider, and the following required configurations.
  • Set the ACS URL to https://github.com/enterprises/foo/saml/consume.
  • Set the Audience to https://github.com/enterprises/foo.
  • Set the Issuer to https://github.com/enterprises/foo.
  • Set the Service Provider Binding to Post.
  • Under Advanced protocol settings, select an available Signing certificate. It is advised to download this certificate as it will be required later. It can be found under System > Certificates in the Admin Interface.
  • Under NameID Property Mapping, set NameID Property Mapping to be based on the Email field.
• Configure Bindings (optional): you can create a binding (policy, group, or user) to manage the listing and access to applications on a user's My applications page. If you add the SCIM provider as a backchannel provider later, only users who can view this application will be synchronized.

3. Click Submit to save the new application and provider.

Create the user and administrator entitlements

In the authentik Admin interface, open the GitHub EMU application that you just created, click the Application entitlements tab, and create two entitlements named GitHub Users and GitHub Admins.

After creating the entitlements, open each entitlement and bind the users or groups that should receive it.

GitHub SAML Configuration

When your EMU is provisioned by GitHub, you will receive an email inviting you to reset the password of your 'setup user'. This user cannot be linked with SSO and is an emergency access account, as it will be the only account that can bypass SSO requirements.

Before enabling SAML, go to your Personal access tokens on your EMU setup user and Generate a new personal access token (classic). This should have a descriptive note like SCIM Token. It is advisable to set this to not expire. For scopes, select only admin:enterprise and click Generate token.

Copy the resulting token to a safe location.

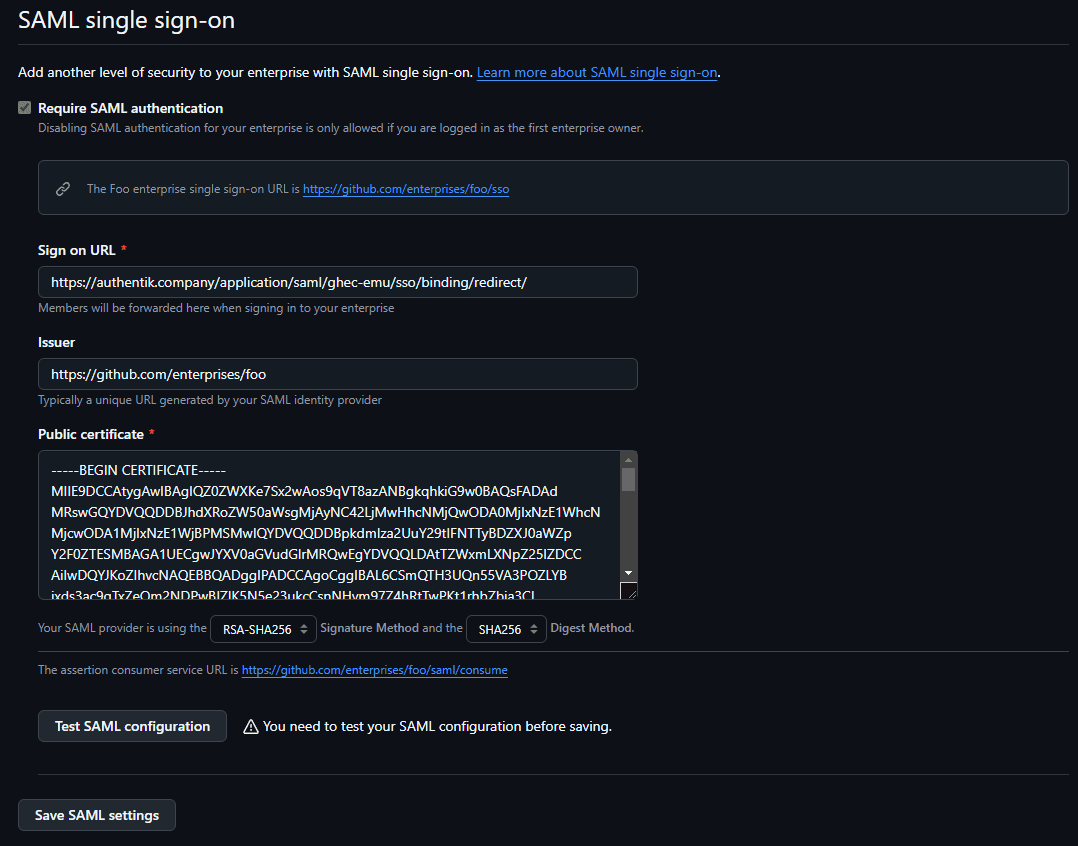

After you have set a password for this account and generated your SCIM token, navigate to your enterprise settings by clicking your GitHub user portrait in the top right of GitHub.com, select Your enterprise, click the Settings link, and then click Authentication security.

On this page:

• Select the Require SAML authentication checkbox.
• In Sign on URL, input the SSO URL (Redirect) entry from the SAML provider you created.
• For Issuer, input the Issuer you set in authentik.
• For Public certificate, paste the full signing certificate into this field.
• Verify that the Signature method and Digest method match your SAML provider settings in authentik.

Once these fields are populated, you can use the Test SAML configuration button to test the authentication flow. If the flow completes successfully, you will see a green tick next to the Test button.

Scroll down to hit the Save SAML settings button below.

You will now be prompted to save your SAML recovery codes. These will be necessary if you need to disable or change your SAML settings, so keep them safe!

SCIM Provider

Before we create a SCIM provider, we also have to create a new Property Mapping. In authentik, go to Customization, then Property Mappings. Here, click Create, select SCIM Provider Mapping. Name the mapping something memorable and paste the following code in the Expression field:

entitlement_names = {
    entitlement.name
    for entitlement in request.user.app_entitlements(provider.application)
}

roles = []
# Edit this if statement if you need to add more GitHub roles.
# Valid roles include:
# user, guest_collaborator, enterprise_owner, billing_manager
if "GitHub Admins" in entitlement_names:
    roles.append({'value': 'enterprise_owner', 'primary': True})
elif "GitHub Users" in entitlement_names:
    roles.append({'value': 'user', 'primary': True})
return {
    "roles": roles,
}

If you renamed either entitlement, make sure that you update the code above to match.

Create a new SCIM provider with the following parameters:

• URL: https://api.github.com/scim/v2/enterprises/foo/ (Replacing foo with your Enterprise slug.)
• Token: Paste the token provided from GitHub here.
• In the Attribute mapping section, de-select the authentik default SCIM Mapping: User mapping by selecting it on the right-hand side and clicking the left-facing single chevron.
• Select the property mapping you created in the previous step and add it by clicking the right-facing single chevron.
• You can leave the Group Property Mappings as is.
• Click Finish.

Go back to your GitHub EMU Application created in the first step and add your new SCIM provider in the Backchannel Providers field, then click the Update button.

You should now be ready to assign users or groups to your GitHub Users and GitHub Admins application entitlements. Use application bindings or policies to limit which users can view the application and are synchronized by SCIM, and use the entitlements to assign the corresponding GitHub SCIM role values. If you do not see your users being provisioned, go to your SCIM provider and click the Run sync again option. A few seconds later, you should see results of the SCIM sync.
